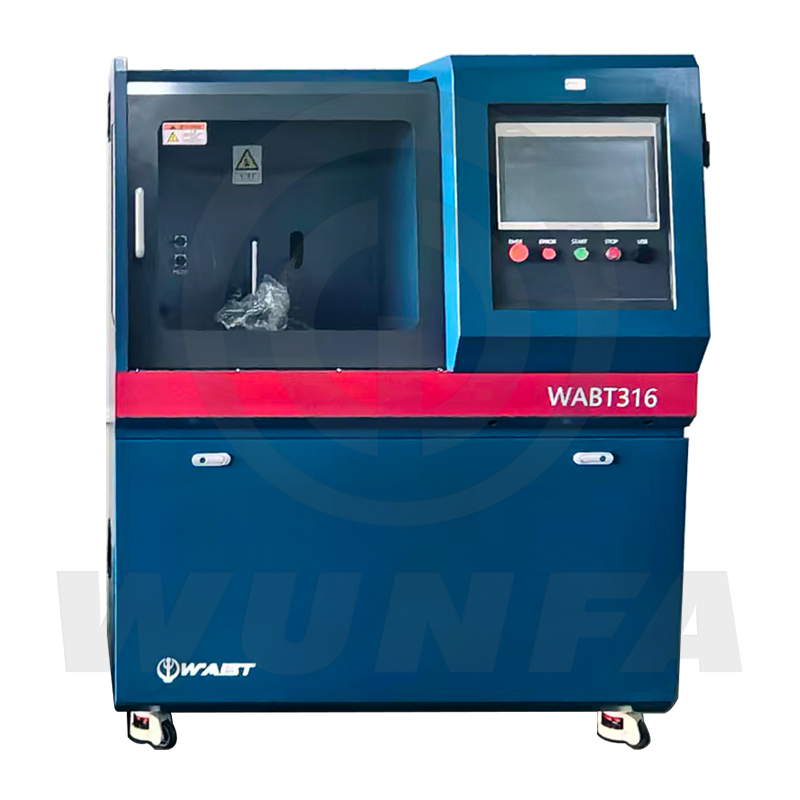

Common Rail Injector Test Bench WABT316

1. Product Model

Common Rail Injector Test Bench WABT316

2. Product Introduction

The WABT316 is a testing bench designed for precise testing of aftermarket injectors. It is capable of testing the full range of common rail injectors currently available, covering CUMMINS, BOSCH, DENSO, DELPHI, and CAT, and includes an optional piezoelectric testing kit.

3. Product Specifications

3.1 Application

Testing of common rail injectors from Cummins, Bosch, and other brands.

3.2 Test Content

Injector sealing; injector cleaning; injection and return flow at full load; injection flow at discharge, pre-injection, and idle.

3.3 Main Specifications

· Test Cycle: 5 min
· Full Load Injection Flow Test Repeatability Accuracy: ±0.5%
· Rail Pressure Recording: 240 MPa
· Rail Pressure Adjustment Accuracy: ±0.5 MPa
· Dimensions: Length * Width * Height = 1300 * 800 * 1680 mm, Weight: 400 kg

4. Features

· Uses an original imported flow meter
· Can test injectors from Bosch, Cummins, Caterpillar, Denso, Delphi, Siemens, and domestic brands; Customizable formulas available; controller is a Siemens PLC.
