PT Pump Test Bench PT-001B

PT Pump Test Bench PT-001B

OEM     Available

Payment PayPal,Western Union,T/T

Place of Origin China


1.Product Model


2.Product Application

Used for Cummins PT pump performance testing.

3.Product Description

This test bench has the higher features more than PT-001A, equipments with numberic display. Please see below to find features.

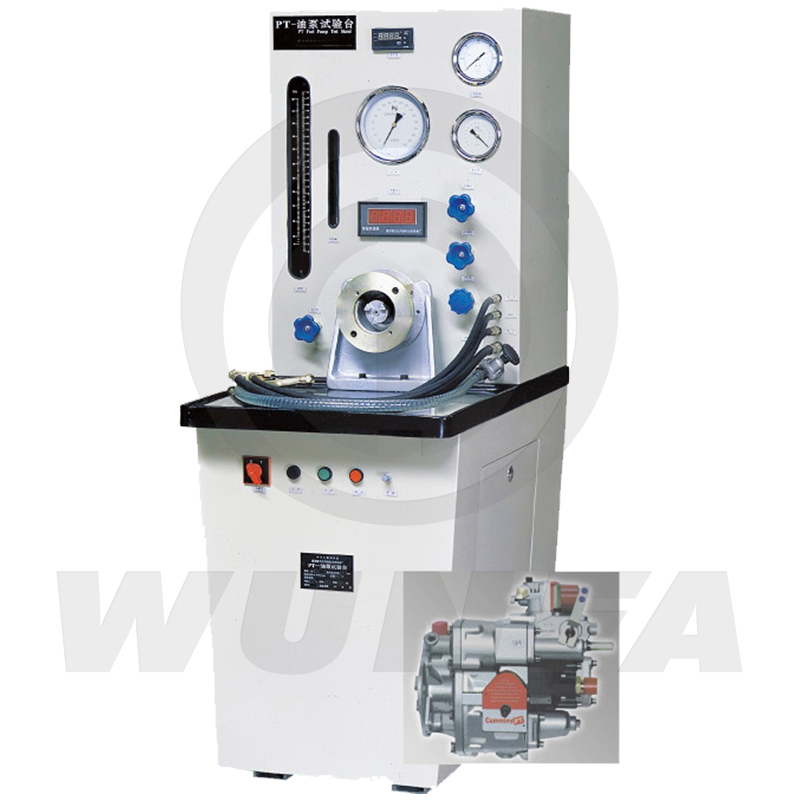

PT-001B PT pump test bench
This test bench is used for repairing, adjusing and checking Cummins PT pump.

It has the following features
1.Import frequency adjusing speed, high accuracy, easy to operate, save energy
2.flow quantity, main pressure, air pressure and vacuum are English unit
3.Specially use double-float rotormeter

Technical parameter:
1.Speed: 0-4200 R.P.M
2.Pressure gauge: 0-400psi
3.Main flowmeter:   75-2400Lb/h
4.Idle/leakage flowmeter: 10-760cc/min
5.Vacuum gauge: 0-30 in. Hg
6.Air pressure gauge: 0-30psi
7.Power: 5.5kw
8.Power supply: AC 380V 50Hz
9.Direct power supply: 0-30V 3A
10.Fuel temperature: 38±2℃
11.External dimension: 600mm*1000mm*1630mm
12.Weight: 350KG
