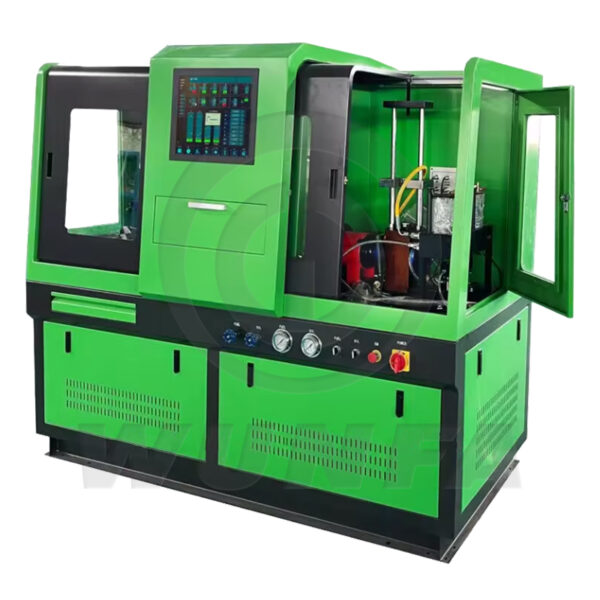

Electronic Control Multi-function Test Bench CR966

Right area function
1. Automatically test common rail pumps!
2.Automatically test Denso HP0 pumps
3.Automatically test CAT 320D Pumps
4.Automatically test CAT C7/C9/C-9/3126B injectors
5.Automatically test EUl/EUP with EU103 cambox

Left area function
1. Automatically test common rail injectors and piezo injectors.(One set flow sensor system, can test 1pc injector)
2. Automatically test the industance of injector solenoid valve
3. Automatically test voltage-current curve of the iniecton
4. Blp function for common rail injector.

Right area function details

Standard
1. Automatically test common rail pumps!
2.Automatically test Denso HP0 pumps
3.Automatically test CAT 320D Pumps
4.Automatically test CAT C7/C9/C-9/3126B injectors
5.Automatically test EUl/EUP with EU103 cambox
Optional
6. Automatically test Cummins HPl injector (X15/060 injector)
7.Automatically test CAT HEUP actuating pump
8 Automatically test 3408 3412 ford 6.0 iniector
9. Automatically test 3412E ISUzU injector
10.Automatically test G2.9 3116 injector

Left area function details.

Standard
1. Automatically test common rail injectors and piezo injectors.(One set flow sensor system, can test 1pc injector)
2. Automatically test the industance of injector solenoid valve
3. Automatically test voltage-current curve of the iniecton
4. QR coding for BOSCH DENSO DELPHI SIEMENS
Optional
5. Blp function for common rail injector.

Parameters

Output Power4kw+7.5kw (11kw,15kw,18.5kw,22kw for optional)
Working Voltage380V,3Ph (220V 3Ph/1Ph for optional)
Pressure Range0-2800 bar
Motor Speed0-4000 rpm
Flow Rate Range0.008-4L/min
Accuracy0.30%

Accessories

No.ApplicationPicture
1Detecting of BOSCH DELPHI, DENSO, SIEMENS brand common rail electromagnetic injector
Detecting of Piezo injector
Detecting of common rail pumps.
Maximum pressure 2600bar
Injector solenoid valve resistance/inductance testing
2EUI EUP testing
BOSCH,CAT,CUMIMINS,DELPHI,Benz,Volvo
Double solenoid valve injector testing
EUS100 / EU101 CAM BOX (Optional)
3HEUI injector testing
CAT C7/C9/C-9/C3126B HEUI
4CAT actuator pump testing (Optional)
5CAT320 pump testing
6DENSO HP0 pump testing
7CUMMIS HPI Q60,X15 Injector testing (Optional)

8BIP injector responding time
9AHE Dynamic armature stroke testing (Optional)
101. BOSCH 6,7,8,9,10-digit IMA code generation 2. BOSCH piezoelectric IMA, ISA code generation 3. DENSO QR oil volume correction code generation 4. DELPHI C21, C31 code generation 5. SIEMENS VDO IIC code generation 6. XPI injector fuel quantity correction code generation
111. Detecting the oil volume of the metering valve under various working conditions 2. Detecting the resistance and inductance of the metering valve



12External oil cooler (Optional)
13Built-in forced cooling (Optional)
