1.Product Model
PT-200G with Display Screen
2.Product Application
This test bench is used for repairing, adjusting and checking the injector,for Cummins N, K, L10, M11 series engine.
3.Product Description
The PT-200G injector flow test bench has the high features more than the others products, Please refer below to find features and the technical parameters.

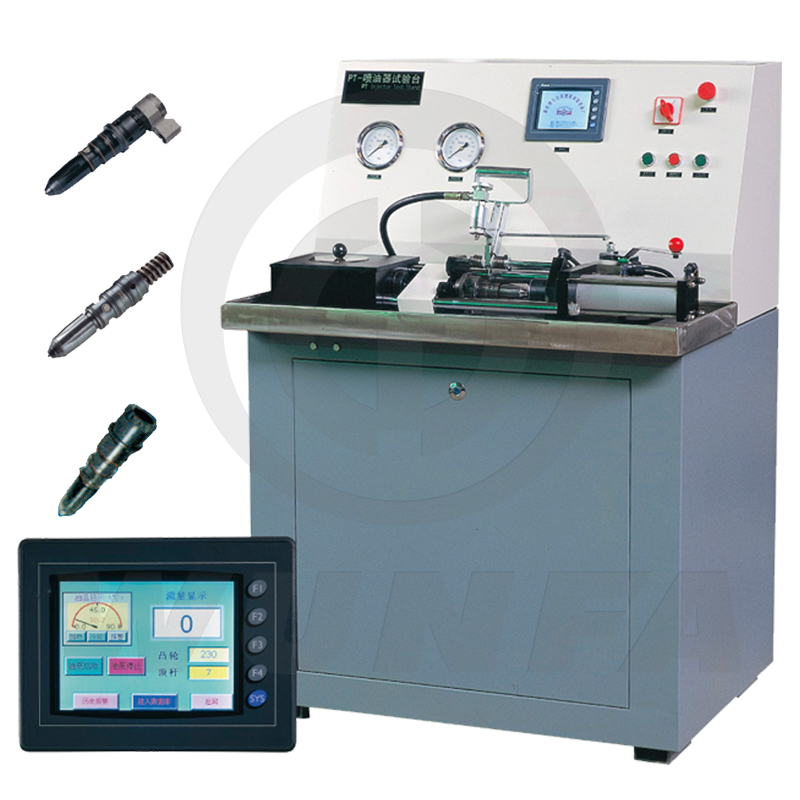

PT-200G PT INJECTOR FLOW test bench
This test bench is used for repairing, adjusing and checking the injector, for Cummins N, K, L10, M11 series engine
It has the following features:
1.Adopt man-machine intelligent interface, easy to operate, more convenient for the users, it is convenient for users to communicate and use the machine.
2.Adopt automatic servo system and follow-up system, this can ensure repeatability and high precision of flow quantity checking
3.Fuel feed hand lever has a good design, it can on-line checking and adjusting the oil quantity without to remove the injector from the test bench, it can save time and be more convenient
4.It has injecting backing pressure simulator , it can simulate the oil injecting condition of the engine , and make the equipment testing to approach the actual working condition of the engine
5.Electric system adopts the man-machine interface, sensors, PLC control, it has high reliability
Technical parameter:
1.Range of measurment: 0~1000cc/stroke
2.Fuel temperature: 38±2℃
3.Clamping pressure:74psi
4.Oil feed pressure: 100psi
5.Power supply: AC 380V50HZ
6.Power: 3.5KW
7.External dimension: 1020mm*800mm*1430mm
8.Weight: 450KG
