PT Pump Test Bench PT-100G

PT Pump Test Bench PT-100G

OEM     Available

Payment PayPal,Western Union,T/T

Place of Origin China

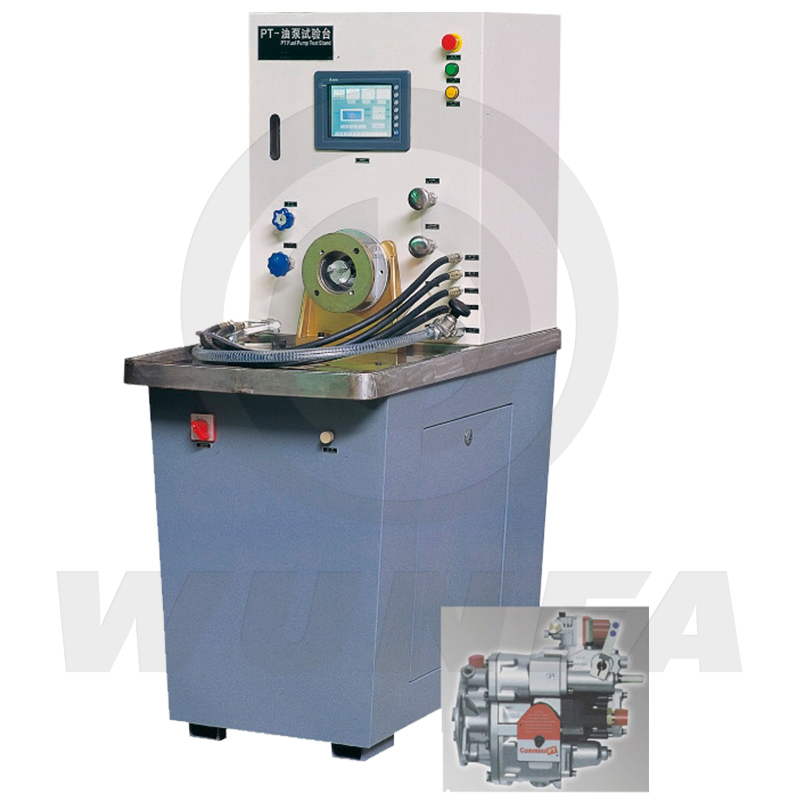

PT-100G PT pump test bench

This test bench is used for repairing, adjusing and checking Cummins PT pump and PT electric injection pump. It has the following features:
1.Adopt man-machine intelligent interface, digital display various parameters, strong database and dynamic display,   more convenient for the users
2.Import high precision flow sensor, pressure sensor, temperature sensor and   transducer,   the measurement accuracy is more higher
3.Adopt import frequency to adjust speed, high reliability and energy- saving
4.It can be connected with the computer according to the user need, easy to save, print and network management

Technical parameter:
1.Speed: 0-4200 R.P.M
2.Pressure gauge: 0-400psi
3.Main flowmeter:   75-2400Lb/h
4.Idle/leakage flowmeter: 10-760cc/min
5.Vacuum gauge: 0-30 in. Hg
6.Air pressure gauge: 0-30psi
7.Power: 5.5kw
8.Power supply: AC 380V 50Hz
9.Direct power supply: 0-30V 3A
10.Fuel temperature: 38±2℃
11.External dimension: 600mm*1000mm*1630mm
12.Weight: 350KG
