1.Product Model
PT-001A
2.Product Application
Used for Cummins PT pump performance testing.
3.Product Description

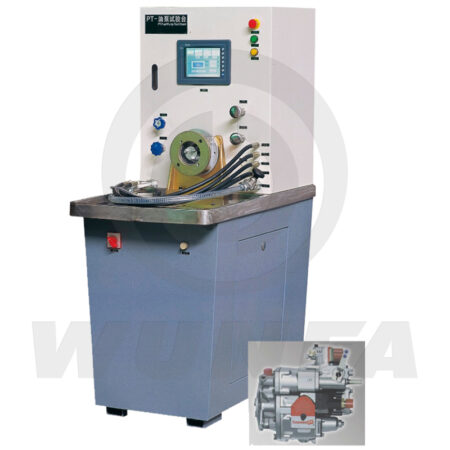

Simple and cheap, but need to work with normal mechanical test bench. the fuction and parameter is same to the one on PT-001B and PT-100G. Please see below to find the Technical parameter.

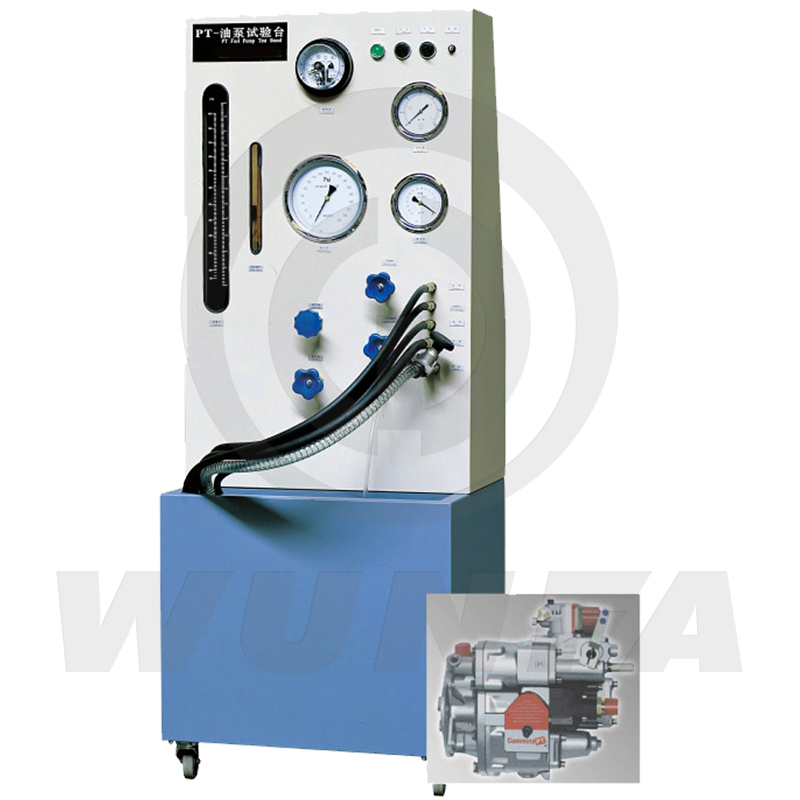

PT-001A PT PUMP TEST BENCH
This test bench is simplified on the base of PT-001, it need to be used with other normal test bench for power supply. Its meter is same to the one on PT-001
Technical parameter:
1.Pressure gauge:0-2.5Mpa
2.Main flowmeter: 75-2400Lb/h
3.Idle/leakage flow meter: 10-760cc/min
4.Vacuum gauge:-0.1-0 Mpa
5.Air pressure gauge: 0-0.25 Mpa
6.Power: 1.2 kw
7.Power supply: AC 220V 50Hz
8.Fuel temperature: 38±2℃
9.External dimension: 600mm*1000mm*1690mm
10.Weight: 65KG
