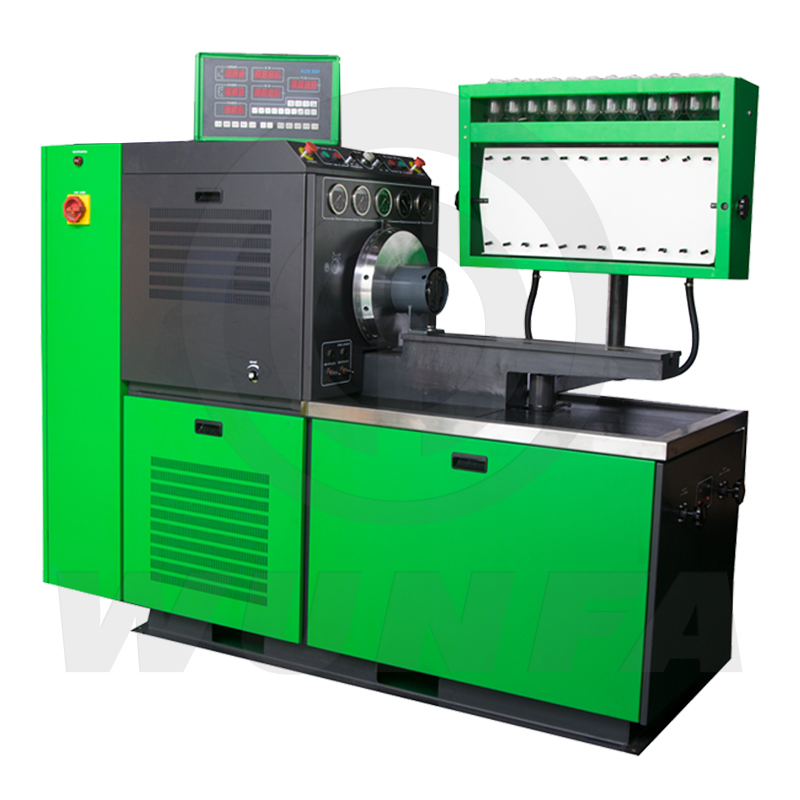

WFM600

WFM600

OEM     Available

Payment PayPal,Western Union,T/T

Place of Origin China

MORE DETAILS

A.Technical specification

1. Motor power: 5.5, 7.5, 11, 15, 18.5, 22kw
2. Power supply voltage: 415, 380, 220V
3. Frequency: 50/60 HZ
4. Protection level: IP54
5. Speed range: 0-4000 RPM
6. Counter setting range: 0-9999
7. Temperature setting range: 0-80 degree
8. Center height of driving shaft: 125mm
9. DC power: 12/24V
10. Diameter of the Driving coupling: 120mm
11. Measuring tube: 45ml, 150ml, 260ml(optional)
12. Number of measuring cylinder: 6, 8, 12
13. Oil supply pump: 10L/MIN
14. Oil supply pressure:
High pressure: 0-40bar;
Low pressure:0-4bar
15. Oil tank volume: 60L
16. Pressure gauge:
Low pressure: 0-6 bar;
High pressure:0-60 bar;
Inner pressure:0-16bar;
Positive and negative pressures: -1 – 2.5 bar;
Lubricating oil meter: 0-10bar
17. Heat Power: 2kw
18. Temperature controlled range: 30-65 degree
19. External dimension: 2100mmx1100mmx1750mm
20. Weight: 950KGS

B.Product Function

1. Checking each cylinder oil supply quantity at different speed.
2. Parameter of speed, temperature, counter, air pressure, rack meter stroke can be displayed on the computer of test bench.
3. Digital control unit or computer, also can operate by computer
4. Advanced Numeric monitor
5. Driven by motor directly, speed frequency regulation
6. Statically inspect the oil supply time of each cylinder.
7. Check the performance of mechanical Governor
8. Check the Performance of the solenoid valve of VE pump
9. Check the Performance of the pneumatic governor
10. Check the Performance of the pressure compensator
11. Check the oil-return volume of VE pump.
12. Check the Inner pressure of the VE pump
13. Check the minus pressure performance of pneumatic governor

Accessory List

NO. Name Specification Qty Unit
1Standard injector AssemblyZ12J10pcsOptional
2Flange seat1pcStandard
Flange3kinds(3 hole /10 hole /12 hole )3pcsStandard
Washer for flange6pcsStandard
3High pressure pipe6*2-M12*M14-600mm(M12:M12*1.5;M14:M14*1.5)12pcsStandard
4High pressure pipe6*2-M14*M14-600mm(M14:M14*1.5)6pcsStandard
5High pressure pipe6*2-M12*M14-845mm(M12:M12*1.5;M14:M14*1.5)6pcsStandard
6High pressure pipe6*2-M12*M14-450mm(M12:M12*1.5;M14:M14*1.5)6pcsStandard
7Inlet pipeboth ends M18*1.5-1100mm1pcStandard
8Outlet pipeboth ends M18*1.5-1100mm2pcsStandard
9HolderM12*1.52pcsStandard
10HolderM14*1.52pcsStandard
11HolderM16*1.52pcsStandard
12DriStandarding shaft spanner1pcStandard
13Pipe connectorsΦ12mm2pcsStandard
14Pipe connectorsΦ14mm2pcsStandard
15Pipe connectorsΦ16mm2pcsStandard
16CouplingΦ17mm1pcStandard
17CouplingbΦ20mm1pcStandard
18CouplingbΦ25mm1pcStandard
19CouplingbΦ30mm1pcStandard
20Pump holder (clip)2pcsStandard
21Graduator45ml12pcsStandard
22Graduator150ml12pcsStandard
23Clip for graduator45ml5pcsStandard
Clip for graduator150ml5pcsStandard
24SpannerS51PCStandard
25SpannerS101PCStandard
26WasherΦ12mm4pcsStandard
27WasherΦ14mm8pcsStandard
28WasherΦ16mm4pcsStandard
29Plate spacerH802pcsStandard
30Plate spacerH872pcsStandard
31Plate spacerR452pcsStandard
32Plate spacerR562pcsStandard
33Plate spacerH712pcsStandard
34Plastic reducer4pcsStandard
35wire12Standard/24Standard1pcStandard
36fuse2A2pcsStandard
37fuse4A2pcsStandard
38fuse10A2pcsStandard
39Air pipe8mm2mStandard
40Pressure holderΦ8mm1pcStandard
Φ10mm1pcStandard
Φ12mm1pcStandard
41Initial pressure holderM12*1.51pcsStandard
42Initial pressure holderM14*1.51pcsStandard
43Dial gauge0-30mm1pcStandard
44Gauge holder1pcsStandard
45High pressure pipe8*3-M14*M14-600mm6pcsOptional
46High pressure pipe8*3-M14*M14-1000mm6pcsOptional
47CouplingbΦ35mm1pcOptional
